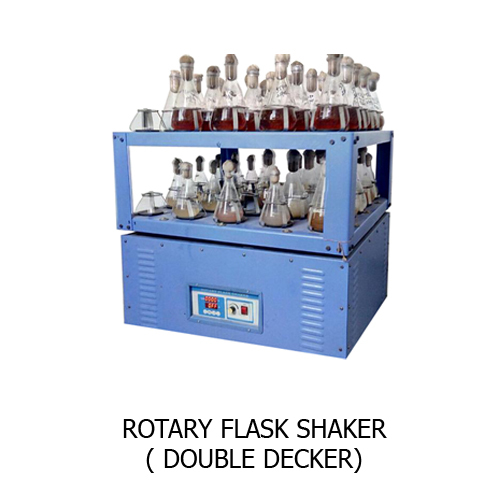

Rotary Flask Shaker Double Decker
ARFSDD-182A ROTARY FLASK SHAKERDOUBLE DECKER
Specification same as above as per cat No ARFS-182 but flask shaker are double deckerto hold the flask in two compartments. Body made of mild steel, fitted withSS-304 GRADE lotus clamp with spring, fitted with heavy duty continous rating motor with speed regulator. Speed range 50 to 250 RPM To work on 220/230 volts A.C. Supply.
Details
PLATEFORM SIZE (SingleRow) | SHAKING FREQUENCY | ORBITAL MOTION (DIA) |
45x45 cm to hold16 flask of 250 ml | 50 to250 RPM | 19 mm |
45x45 cm to hold 25flask of 100 ml | 50 to250 RPM | 19 mm |
45x45 cm to hold 9flask of 500 ml | 50 to 250 RPM | 19 mm |
60x60cm to hold 36flask of 250 ml | 50 to250 RPM | 25mm |
60x60cm to hold 25flaskof 500 ml | 50 to 250 RPM | 25 mm |
120x120 cm tohold 80 flask of 250 ml | 50 to250 RPM | 25 mm |
120x120 cm tohold 60 flask of 500 ml | 50 to250 RPM | 25 mm |
120x120 cm tohold 40 flask of 1000 ml | 50 to250 RPM | 25 mm |
